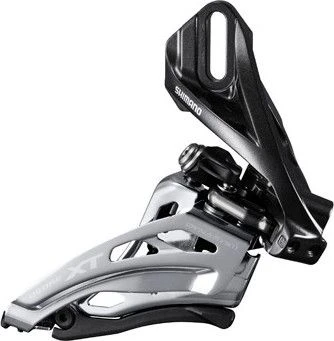

Shimano’s new FD-M8020 master front shifting for a 2×11 crankset with a bold new design and approach. Designed specifically with modern trail bikes in mind, Shimano’s XT Side-Swing front derailleur provides 15mm of increased tire clearance, while new cable routing dramatically reduces shifting effort. Designed for larger wheels and longer travel.
Features:
Â
- Swing Action: Side Swing
- Cassette Compatibility: 11
- Maximum Capacity: Total capacity 10T
- Top Gear Teeth: 34-38T
- Cable Routing: Front-Pull
- Chain Line: 48.8 (Compatible with the special crankset which chain line is 3mm outboard. The special frame is required.)
- Chain Stay Angle: 66-69°
MORE INFORMATION
See all the products related to your Shimano transmisson.
| Front derailleur mount | Direct High Mount (D-type) |
| Chainrings | 2 |
| Pull | Side-Swing |
| Speed | 11 |
