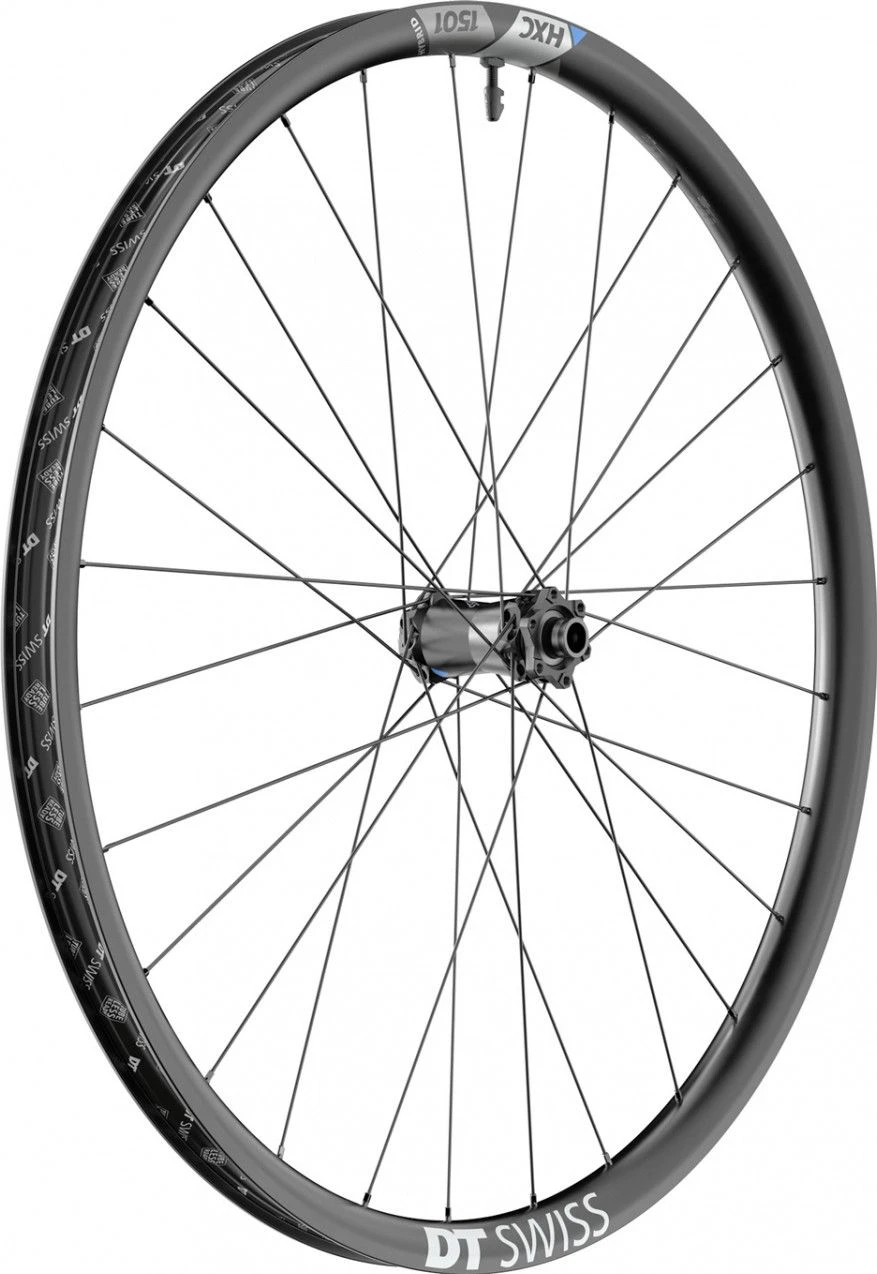

Built to extend your eMTB adventures. The DT Swiss HXC 1501 Spline One is a carbon wheel with high-end technology. This Hybrid wheel was made for riders who are looking for the ultimate performance an eMTB wheelset can offer. Now with a carbon rim, the HXC 1501 Spline One becomes the high-end Hybrid MTB wheel in the DT Swiss portfolio. The carbon rim is combined with a redesigned hub shell, offering better drive and brake moment resistance, which occurs from the bigger motors and the heavier eMTBs.
With the new Ratchet EXP OS system with 30 teeth, the torque developed by the motor and the rider is transmitted directly from the pedals to the ground. This transfer is enabled through reinforced spokes for even sharper accelerations than the previous Hybrid range. Every component has been thought out, developed and tested to ensure a fun, stress-free ride at all levels.
Main features:

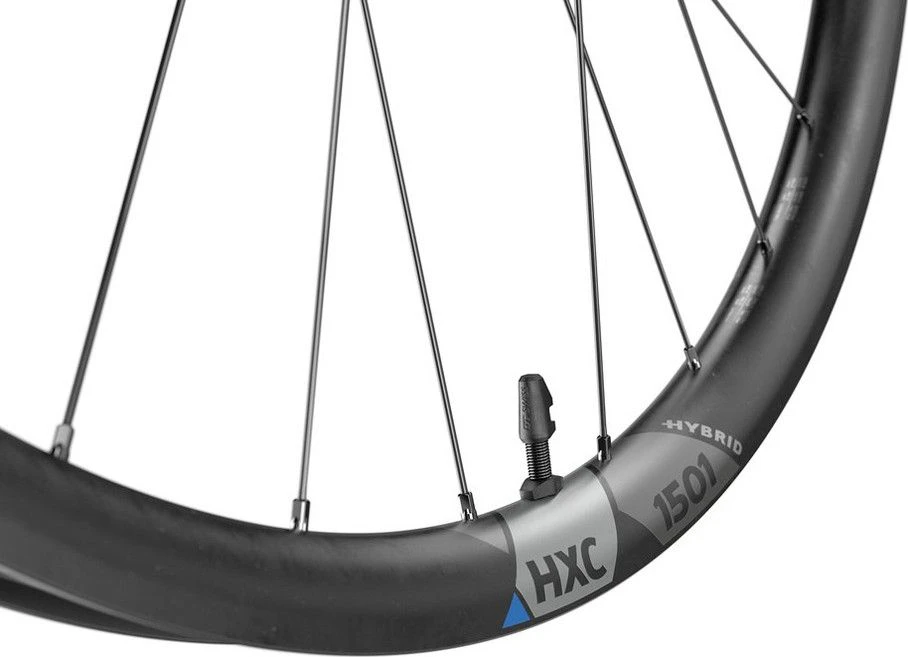

- A high-end, hookless and tubeless ready carbon rim with UD finish available in 30 (29” and 27,5”) or 35 mm (only 27,5”).
- Redesigned hub shell for enhanced durability with better brake and drive torque resistance than the previous range, and burlier eMTB look.
- DT Hybrid 2 spokes are optimized and reinforced to increase the lateral and torsional stiffness of the wheel.
Features:
General:
- Weight: 831 g.
- Recommended system weight max: 140 kg.
- ASTM Classification: 4.
Rim:
- Material: carbon.
- Tire interface: Hookless tubeless TSS.
- Valve hole: Presta.
- Rim diameter: 27.5″ / 650b.
- Decal type: Waterslide.
- Inner width: 30 mm.
- Outer width: 36 mm.
- Rim height: 25 mm.
Hub:
- Hub type: 240.
- Axle system: RWS Thru Axle 15 mm.
- Built-in dimension: Boost 110 mm.
- Brake interface: 6-bolts (Disc IS).
Spokes and nipples:
- Spokes left: DT hybrid 2.
- Spokes right: DT hybrid 2.
- Spoke pattern: Three-cross (1:1).
- Nipples: DT Prolock Squorx ProHead alu.
Inclusive:
- Tubeless tape 32 mm.
- Tubeless valve alu black 18-25 mm.
Reference:
- WHXC150BHIXCA18282: Front wheel – HXC 1501 Spline One 27.5 – 30 mm IS 15/110 mm.
MORE INFORMATION
| Axe Avant. | Boost 15 x 110 mm |
| Montage | Tubeless Ready |
| Format Frein | 6 Bolt |
| Largeur Interne (mm) | 30 |
